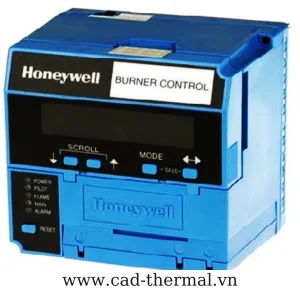

Honeywell EC7823A1004 Burner Controller
Application: On-off control. Functions: automatic sequenced burner control, flame supervision, system safety monitoring, self-diagnostics and fault troubleshooting. Suitable for single oil and gas burners.
- Pilot type Intermittent
- Power supply 220 Vac (+10, -15%), 50 Hz; 60 Hz (±10%)
- Modules used with the RM7800 Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame
- Combustion air flow check Optional
PRODUCT DESCRIPTION
Honeywell EC7823A1004 Burner Controller
Features:
- Factory-integrated system safety features.
- Pilot type: Intermittent
- Supports a local or remote-mounted system information display.
- Plug-in flame signal amplifier module.
- Five LEDs show the step-by-step sequence while the system operates.
Specifications:
- Power supply: 220 Vac (+10, -15%), 50 Hz; 60 Hz (±10%)
- Modules used with the RM7800: Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame
- Combustion air flow check: Optional
- Dimensions (mm): 127 mm wide x 127 mm high x 133 mm deep with Q7800A module
- 155 mm deep with Q7800B module
- Approvals: CSA: Certified, File No. LR95329-3.
- Operating temperature: -40 C to +60 C
TECHNICAL SPECIFICATIONS
Specifications of Honeywell 7800 Series
| PARAMETER | VALUE |
|---|---|
| Model | EC7823A1004 |
| Pilot type | Intermittent |
| Power supply | 220 Vac (+10, -15%), 50 Hz; 60 Hz (±10%) |
| Modules used with the RM7800 | Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame |
| Combustion air flow check | Optional |
| Dimensions (mm) | 127 mm wide x 127 mm high x 133 mm deep with Q7800A module |
| Approvals | CSA: Certified, File No. LR95329-3. |
| Operating temperature | -40 C to +60 C |
| Brand | Honeywell |
| Origin | USA |
Specifications may vary with the ordered configuration. Contact a CAD engineer for sizing to your actual operating conditions.
