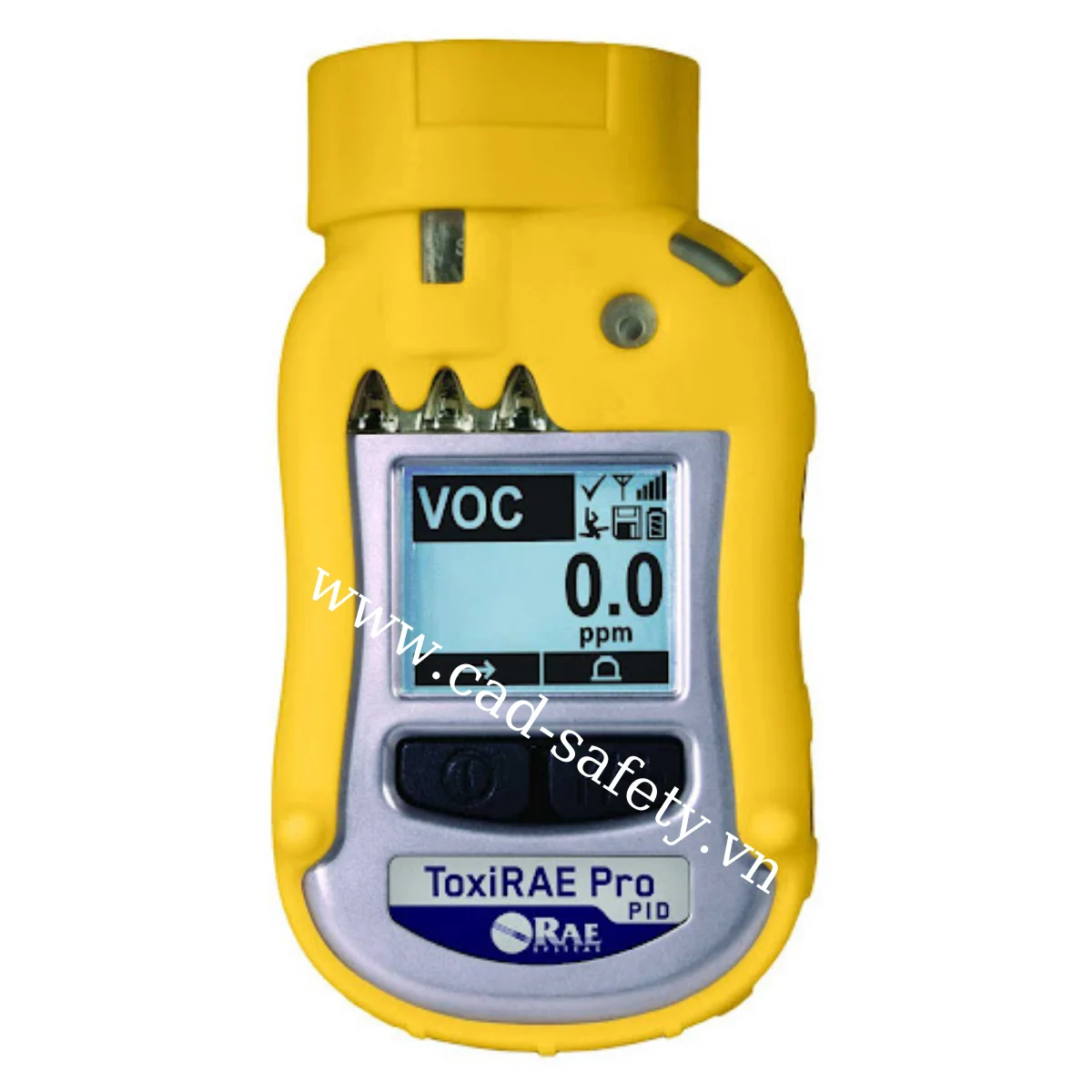

ToxiRAE Pro Family

The ToxiRAE Pro is a gas detector that can detect a wide range of gases, from carbon monoxide, hydrogen sulfide and oxygen to ammonia, chlorine and formaldehyde. It stores calibration data, so users can monitor one toxic gas one day and a different gas the next simply by swapping the sensor in the ToxiRAE Pro.

Gases and measuring ranges:

• AMMONIA (NH3) 0 to 100 ppm
• CARBON MONOXIDE (CO) 0 to 500 ppm
• CARBON MONOXIDE (CO) 0 to 2,000 ppm
• EXT. RANGE CARBON MONOXIDE (CO), H2-COMP. 0 to 2,000 ppm
• CHLORINE (CI2) 0 to 50 ppm
• CHLORINE DIOXIDE (CIO2) 0 to 1 ppm
• ETHYLENE OXIDE (ETO-A) 0 to 100 ppm
• ETHYLENE OXIDE (ETO-B) 0 to 10 ppm
• ETHYLENE OXIDE (ETO-C), EXT. RANGE 0 to 500 ppm
• FORMALDEHYDE (HCHO) 0 to 10 ppm
• HYDROGEN (H2) 0 to 1,000 ppm
• HYDROGEN CYANIDE (HCN) 0 to 50 ppm
• HYDROGEN SULFIDE (H2S) 0 to 100 ppm
• HYDROGEN SULFIDE (H2S), EXT. RANGE 0 to 1,000 ppm
• METHYL MERCAPTAN (CH3-SH) 0 to 10 ppm
• NITRIC OXIDE (NO) 0 to 250 ppm
• NITROGEN DIOXIDE (NO2) 0 to 20 ppm
• OXYGEN (O2) 0 to 30% Vol
• PHOSPHINE (PH3) 0 to 20 ppm
• SULFUR DIOXIDE (SO2) 0 to 20 ppm

Specifications:

SIZE: 4.6" H x 2.4" W x 1.2" D (118 x 60 x 30 mm)

WEIGHT: 7.76 oz. (220 g)

SENSORS: More than 20 interchangeable, field-replaceable intelligent electrochemical sensors

BATTERY: Rechargeable Li-ion battery

– Run time: > 30 hours (normal operation, wireless off)

– Recharge time: < 4 hours via charging cradle

DISPLAY: LCD with white LED backlight (activated by an alarm condition or by pressing a button)

DISPLAY READOUT: Real-time gas concentration in parts per million (ppm) or mg/m3; battery status; datalogging on/off; wireless on/off and reception quality

SAMPLING: Diffusion; automatic with the AutoRAE 2 Test and Calibration System, or manual

ALARM MODES:

– Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs) and on-screen indication of alarm conditions.

– Man Down Alarm with pre-alarm and real-time wireless remote notification

DATALOGGING:

– Data storage: three months (at one-minute intervals)

– Sampling interval adjustable from 1 to 3,600 seconds

COMMUNICATION AND DATA DOWNLOAD:

– Download of logged data via PC

– Data download via the AutoRAE 2 Automatic Test and Calibration System

– Data and status transmission via built-in RF modem (optional)

WIRELESS NETWORK: ProRAE Guardian real-time wireless safety system or closed-loop network with EchoView Host

WIRELESS RANGE (TYPICAL): ToxiRAE Pro to Mesh Router, EchoView Host or Mesh Reader2 ~ 660 feet (200 meters); ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modem ~ 330 feet (100 meters)

OPERATING TEMPERATURE: -4° to 131°F (-20° to 55°C)

HUMIDITY: 0% to 95% relative humidity (non-condensing)

RATING: IP-65

SAFETY CERTIFICATIONS: CSA: Class I, Division 1, Groups A, B, C and D, T-code T4; Class I, Zone 0 A/Ex ia IIC T4. ATEX: II 1G, Ex ia IIC Ga T4. IECEx: Ex ia IIC Ga T4. China Ex: Ex ia IIC T4
