Touchpoint Pro Gas Detection Control Panel
Controller with touchscreen interface. Flexible, expandable system with input/output modules. Integrated power supply module and quick-connect module jacks
- Inputs Max 16 modules with 64 input channels
- Outputs Max 32 output modules with 128 output channels
- Input signal types 4-20 mA, mV-Bridge, digital
- Output signal types 4-20mA, Relay, Modbus RTU
PRODUCT DESCRIPTION
Touchpoint Pro Gas Detection Control Panel
Touchpoint Pro makes it simpler to design, install, configure and operate a gas detection control system. Built on input/output modules, Touchpoint Pro adapts to projects of every size.
Touchpoint Pro is designed for applications that demand high standards such as SIL 2.
The hardware mounts in a standard electrical panel or a standard rack cabinet. Thanks to its modular flexibility, Touchpoint Pro suits everything from small projects to large, complex ones
Specifications:
- Color touchscreen interface.
- Remote input/output (Remote I/O)
- PC access via web (Web Server)
- Inputs: Max 16 modules with 64 input channels
- Outputs: Max 32 output modules with 128 output channels
- Input signal types: 4-20 mA, mV-Bridge, digital
- Output signal types: 4-20mA, Relay, Modbus RTU
- Standard enclosure: 19’’ 5U RACK UNIT
- Color touchscreen: 5.7” TFT
- Operating temperature: -20°C to +55°C
- Humidity: 10% to 90% RH (non-condensing)
- Panel door LEDs: Green, Red, Yellow.
- Panel door buttons: Alarm reset, alarm buzzer silence
- Redundancy: Allows the system to run a redundant ring loop to minimize the risk of network or hardware failure
- Connectivity: Redundant RS485 Modbus, RTU, Ethernet
- Sensors: Catalytic or IR for flammable gases, 4-20 mA type for toxic gases and oxygen, plus heat and fire detectors
- Backup battery: 24 V, 12 Ah or 27 Ah options
- Safety standards: IEC/EN 61508 and EN 50402 SIL2
Contact us today for advice tailored to your company’s requirements
TECHNICAL SPECIFICATIONS
Specifications of Honeywell Touchpoint
| PARAMETER | VALUE |
|---|---|
| Model | Touchpoint Pro |
| Inputs | Max 16 modules with 64 input channels |
| Outputs | Max 32 output modules with 128 output channels |
| Input signal types | 4-20 mA, mV-Bridge, digital |
| Output signal types | 4-20mA, Relay, Modbus RTU |

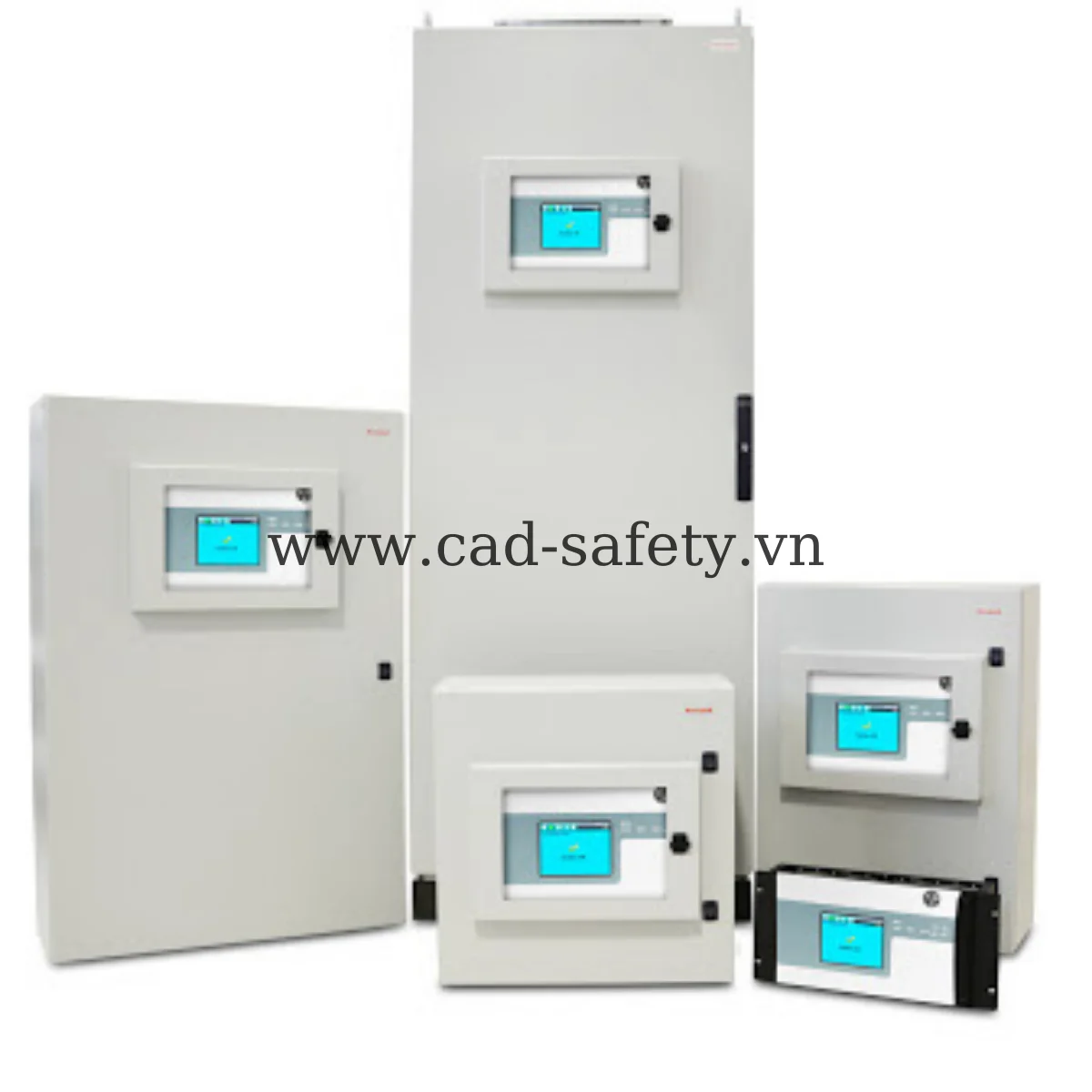

| Enclosure types | Wall-mount, 19" 5U rack (483 x 222 x 110 mm), floor-standing cabinet |
| Color touchscreen | 5.7” TFT |
| Operating temperature | -20°C to +55°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Front panel LEDs | Green (power), Red (alarm), Yellow (fault), Yellow (inhibit) |
| Front panel buttons | Alarm Accept, Alarm Reset, Alarm Buzzer |
| Redundancy | Allows the system to run a redundant ring loop to minimize the risk of network or hardware failure |
| Connectivity | Redundant RS485 Modbus, RTU, Ethernet |
| Brand | Honeywell |
| Power supply | 18-32 Vdc (24 Vdc nominal) |
| Backup battery | 24 V, sealed lead-acid 12 Ah or 27 Ah |
| Safety standards | IEC/EN 61508 and EN 50402 SIL2 |
Specifications may vary with the ordered configuration. Contact a CAD engineer for sizing to your actual operating conditions.
