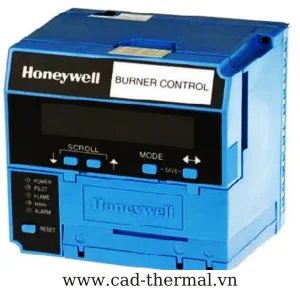

Honeywell RM7885A1015 Burner Controller
Application: On-Off control, PLC. Functions: automatic sequenced burner control, flame supervision, system safety supervision, self-diagnostics and fault recovery. The controller suits oil and gas burners and single-burner applications.
- Pilot control type Interrupted
- Power supply 120 Vac (+10, -15%), 50 Hz; 60 Hz (±10%)
- Modules used with the RM7800 Q7800A,B Universal Wiring Subbases. R7847, R7849, R7848, R7851, R7861 or Flame Signal Amplifier. R7886
- Pilot flame establishing period 15 minutes
PRODUCT DESCRIPTION

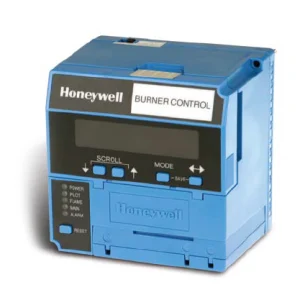

Honeywell RM7885A1015 Burner Controller
Features:
- Factory-built-in system safety features.
- Pilot control type: Interrupted
- Supports a local or remote-mounted system display.
- Integrated flame signal amplifier module.
- 5 LEDs show the step-by-step sequence while the system operates.
Specifications:
- Power supply: 120 Vac (+10, -15%), 50 Hz; 60 Hz (±10%)
- Modules used with the RM7800: Q7800A,B Universal Wiring Subbases. R7847,R7849, R7848, R7851, T7852, R7861 or Flame Signal Amplifier. R7886
- Pilot flame establishing period: 15 minutes
- Combustion air flow check: Optional
- Dimensions (mm): 127 mm wide x 127 mm high x 133 mm deep with Q7800A module
- Subbase depth 155 mm with Q7800B module
- Approvals: CSA: Certified, File No. LR95329-3.
- Operating temperature: -40 C to +60 C
TECHNICAL SPECIFICATIONS
Specifications of Honeywell 7800 Series
| PARAMETER | VALUE |
|---|---|
| Model | RM7885A1015 |
| Pilot control type | Interrupted |
| Power supply | 120 Vac (+10, -15%), 50 Hz; 60 Hz (±10%) |
| Modules used with the RM7800 | Q7800A,B Universal Wiring Subbases. R7847, R7849, R7848, R7851, R7861 or Flame Signal Amplifier. R7886 |
| Pilot flame establishing period | 15 minutes |
| Combustion air flow check | Optional |
| Dimensions (mm) | 127 mm wide x 127 mm high x 133 mm deep with Q7800A module |
| Approvals | CSA: Certified, File No. LR95329-3. |
| Operating temperature | -40 C to +60 C |
| Brand | Honeywell |
| Origin | USA |
Specifications may vary with the ordered configuration. Contact a CAD engineer for sizing to your actual operating conditions.
