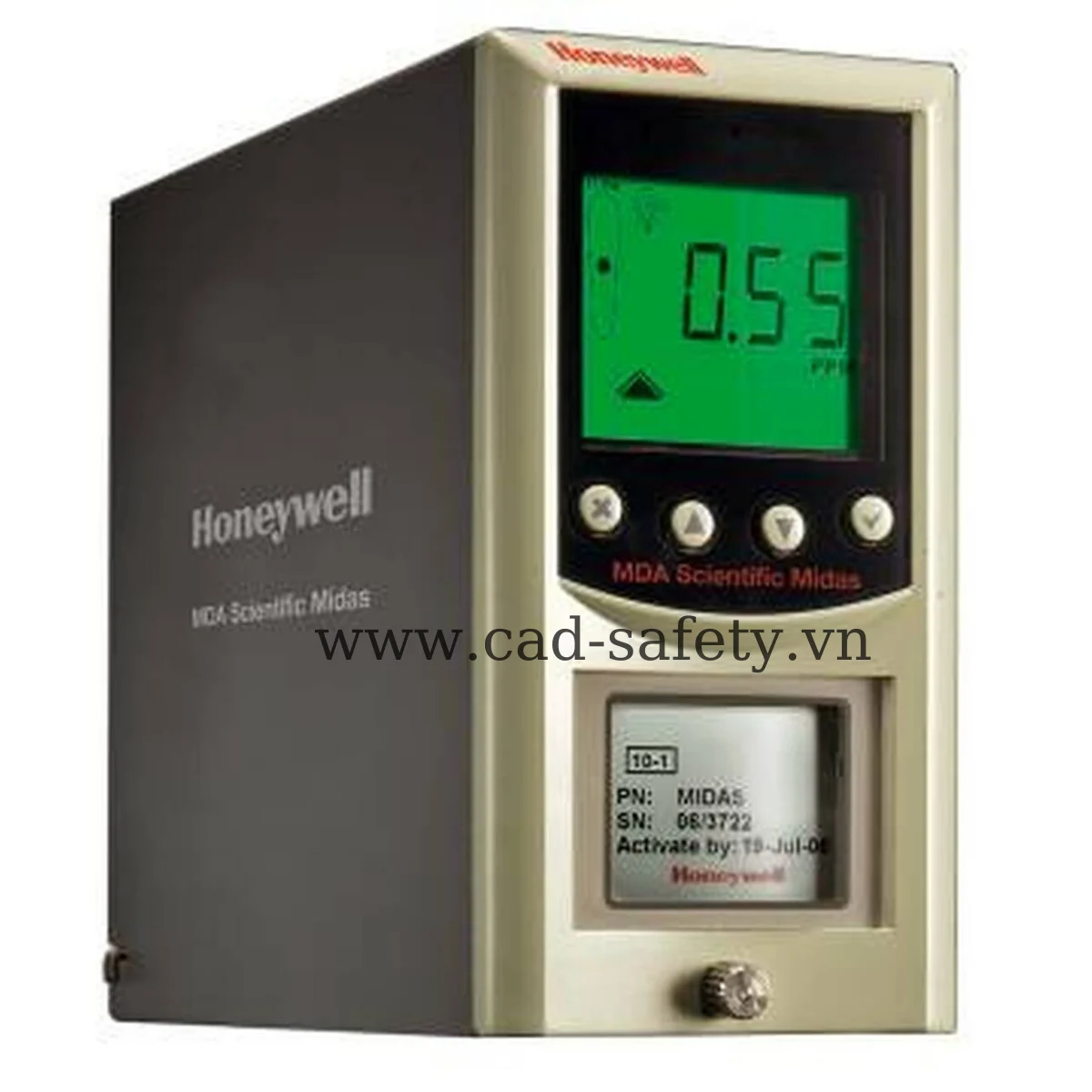

Honeywell Midas Toxic Gas Detector
Gases: NH3, AsH3, BCl3, BF3, Br2, CO2, CO, Cl2, ClO2, B2H6, H2SiCl2, CH2F2, Si2H6, F2, GeH4, C4F6, H2, HBr, HCl, HCN, HF, H2S, CH4, CH3F, NO, N2O, NO2, NF3, C5F8, O2, O3, PH3, SiH4, SO2, TEOS, WF6. Standards: CE, EN, UL, IEEE
- Operating voltage 24 VDC nominal (-15 to +10%, 20.4 to 26.4 VDC); PoE 48 VDC
- Operating temperature 0°C to +40°C (32°F to 104°F); with Pyrolyzer module: 0°C to 30°C
- Humidity 20 – 90% RH
- Operating pressure 90 - 110kPa
PRODUCT DESCRIPTION

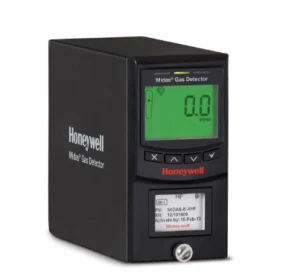

Honeywell Midas Toxic Gas Detector
The MIDAS gas detector uses sensor technology to detect a wide range of toxic and flammable gases present in a plant. It monitors points up to 100 feet (30 meters) away, using patented technology to regulate the flow rate and ensure fault-free gas detection. Built with Honeywell’s advanced robotics, the MIDAS gas detector delivers outstanding quality and reliability.
Gases:
- NH3, AsH3, BCl3, BF3, Br2, CO2, CO, Cl2, ClO2, B2H6, H2SiCl2, CH2F2, Si2H6, F2, GeH4, C4F6, H2, HBr, HCl, HCN, HF, H2S, CH4, CH3F, NO, N2O, NO2, NF3, C5F8, O2, O3, PH3, SiH4, SO2, TEOS, WF6
Specifications
- More than 35 gases available, with a 2-year warranty
- Operating voltage: 24VDC
- Operating voltage with Power over Ethernet (PoE): 48 VDC via PoE
- 3 built-in relays (Form C) for Alarm 1, Alarm 2 and Fault
- Optional Midas Pyrolyzer module connects to any Midas gas detector
- Password-protected menu levels maintain system integrity
- Bright, intuitive LEDs and a large multi-color backlit LCD
- 0-21 mA analog output
- Modbus/TCP Ethernet for easy connection to any control system port and user alarms
- Pump sampling system up to 100 feet
- CE for full immunity to radio frequency interference
- Reflex® sensor health check for improved safety
- TempraSureTM temperature compensation where applicable
- Event logging to review sensor history
- Operating temperature: 0°C to +40°C (32°F to 104°F)
- Humidity: 20 – 90% RH
- Operating pressure: 90 – 110kPa
TECHNICAL SPECIFICATIONS
Specifications of Honeywell Midas Toxic Gas Detector
| PARAMETER | VALUE |
|---|---|
| Model | Midas |
| Operating voltage | 24 VDC nominal (-15 to +10%, 20.4 to 26.4 VDC); PoE 48 VDC |
| Operating temperature | 0°C to +40°C (32°F to 104°F); with Pyrolyzer module: 0°C to 30°C |
| Humidity | 20 – 90% RH |
| Operating pressure | 90 - 110kPa |
| Brand | Honeywell |
| Dimensions | 150 mm (H) x 65 mm (W) x 153 mm (D), with sensor cartridge |
| Weight | 0.8 kg (1.76 lb), with sensor cartridge |
| Relays | 3 relays (Alarm 1, Alarm 2, Fault) 1.0 A @ 30 VDC or 0.5 A @ 125 VAC |
| Analog output | 0 to 21 mA (3-wire sink, 3-wire source or 4-wire isolated) |
| Communication | Modbus/TCP Ethernet, Power over Ethernet (PoE), optional LonWorks interface |
| Sampling distance | Up to 30 m (100 feet) with FEP tubing |
| Certifications | CE; EN 50270:2015; ETL UL61010-1 Ed:3; IEEE 802.3af-2003 |
Specifications may vary with the ordered configuration. Contact a CAD engineer for sizing to your actual operating conditions.
